Taramps Power Store

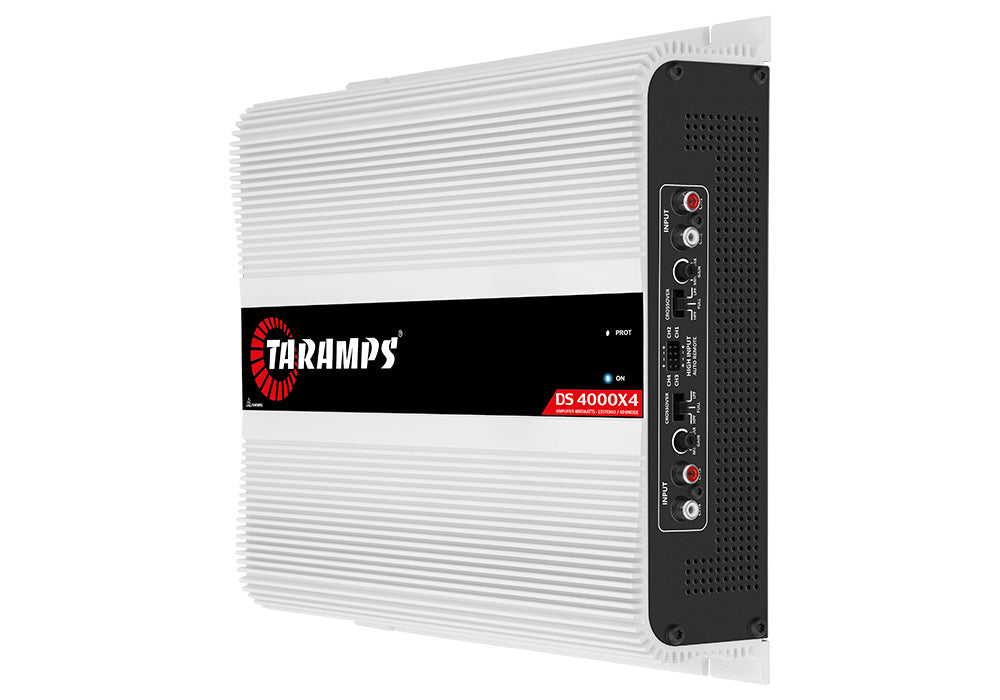

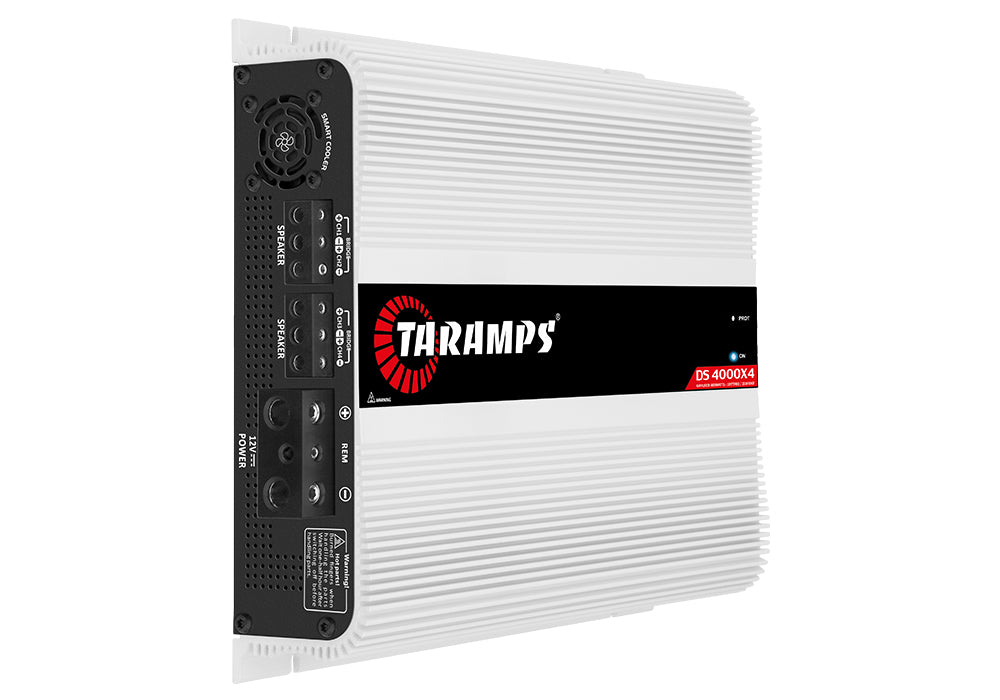

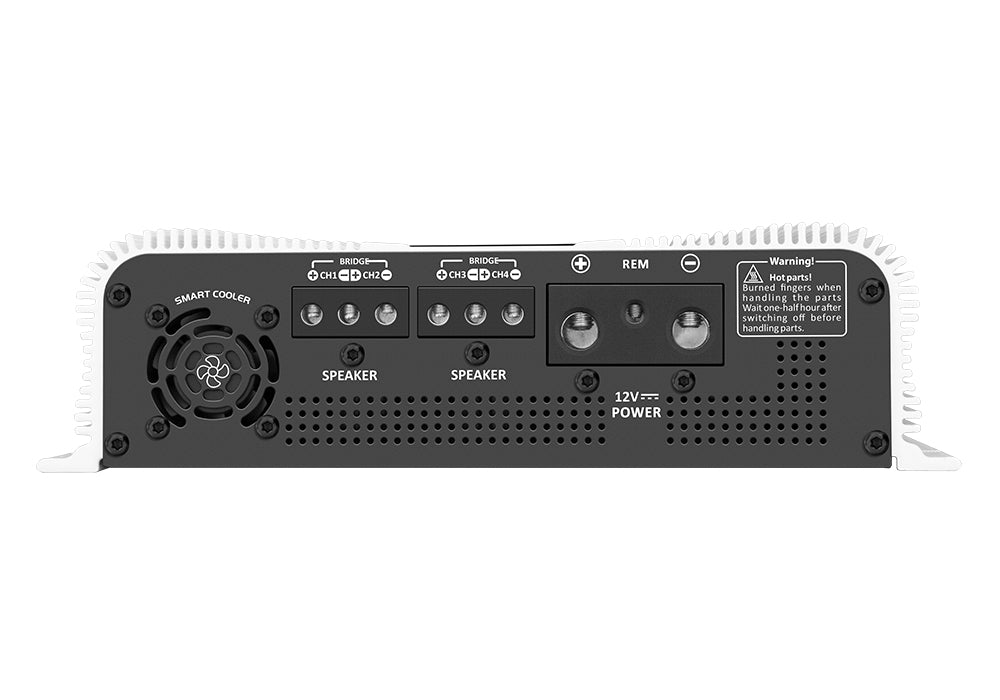

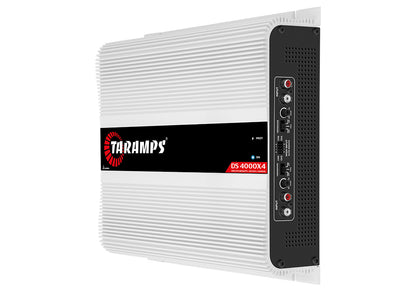

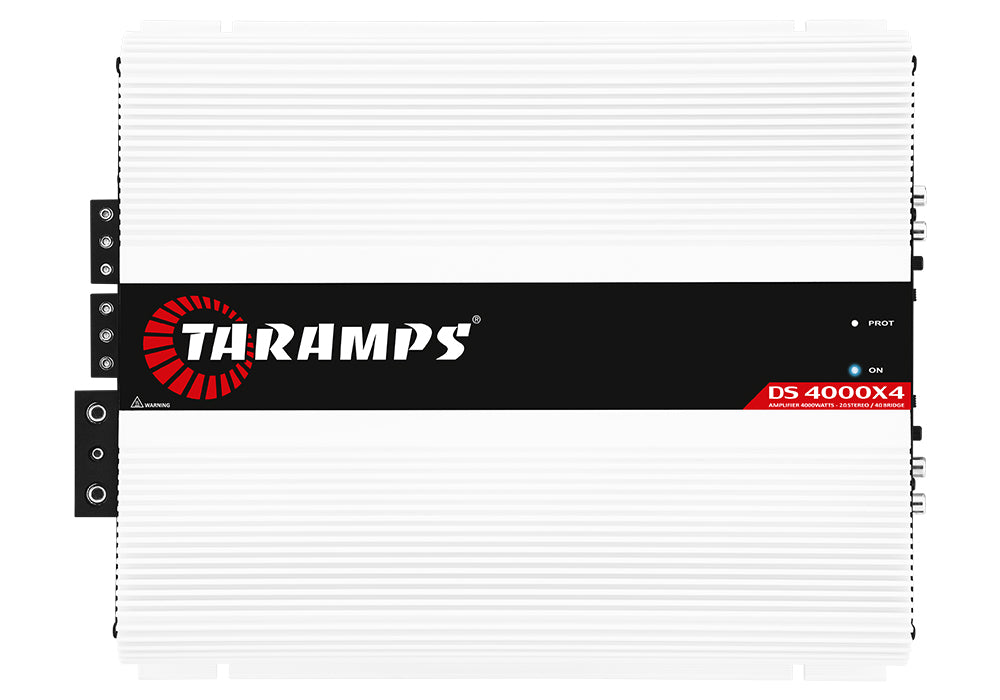

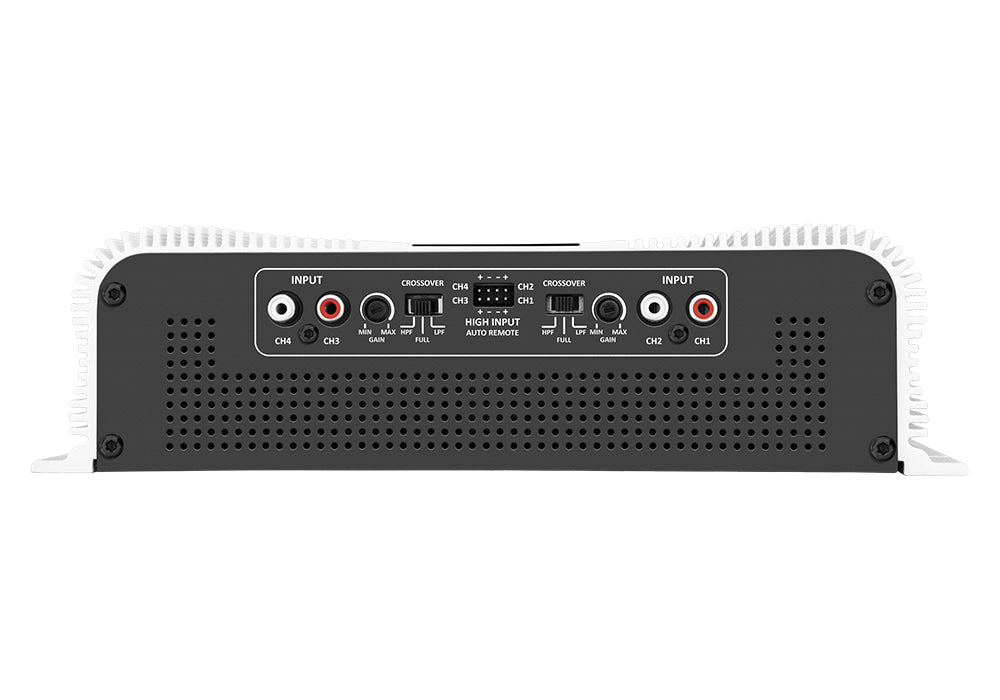

Taramps DS 4000x4 4 CHANNELS CAR AUDIO AMPLIFIER (Choose Impedance)
Taramps DS 4000x4 4 CHANNELS CAR AUDIO AMPLIFIER (Choose Impedance)
Regular price
$340.00
Regular price
Sale price
$340.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
The DS 4000×4 is a 4000W amplifier with 4x1000W RMS channels that can bridge, featuring high-level input and compatibility with most head units. Includes RCA, Gain, and fixed Crossover for enhanced sound across all music styles. Available in 1 or 2 Ohm.
| 1 Ohm VERSION | Nominal Power @14.4VDC 1 Ohm: 4000W RMS (4 x 1000W RMS) 2 Ohms: 2400W RMS (4 x 600W RMS) 4 Ohms: N/A 2 Bridged Channels 2 Ohms: 4000W RMS (2 x 2000W RMS) |
|---|---|
| Number of Channels | 04 |
| Input Sensitivity | (Gain = Max): 250mV (RCA) / 3V (WIRE) (Gain = Max): 4V (RCA) / >10V (WIRE) |
| Signal to Noise Ratio | >86dB |
| Frequency Response | 8Hz ~ 20KHz (-3dB) |
| Crossover high pass (HPF) | 90Hz (-12dB/8ª) Fixed |
| Crossover low pass (LPF) | 90Hz (-12dB/8ª) Fixed |
| protection system | Output Short Circuit |
| Minimum Supply Voltage | 9VDC |
| Maximum Supply Voltage | 17VDC |
| Consumption at rest | 2.5A |
| Maximum music consumption | 185A |
| Maximum consumption in sinusoidal signal | 370A |
| Dimensions (WxHxD) | 10.55" x 2.83" x 13.11" (268 x 72 x 333mm) |
| Weight | 11.15lb (5,06Kg) |
| EAN | 7898556849258 |
