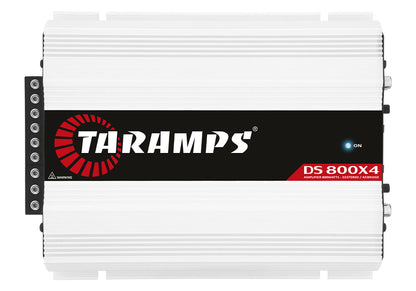

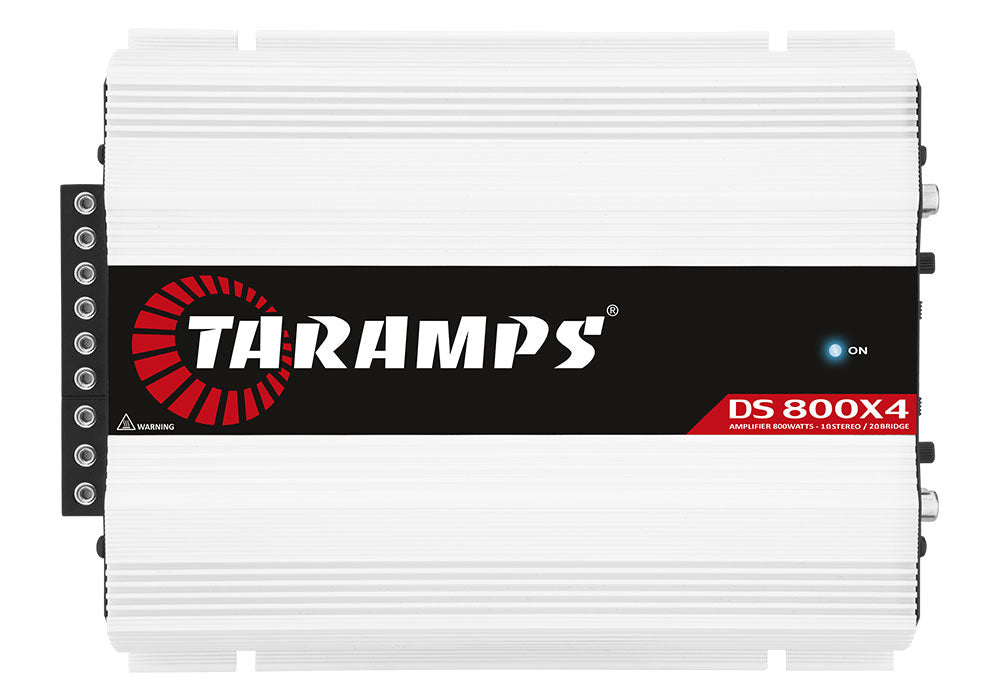

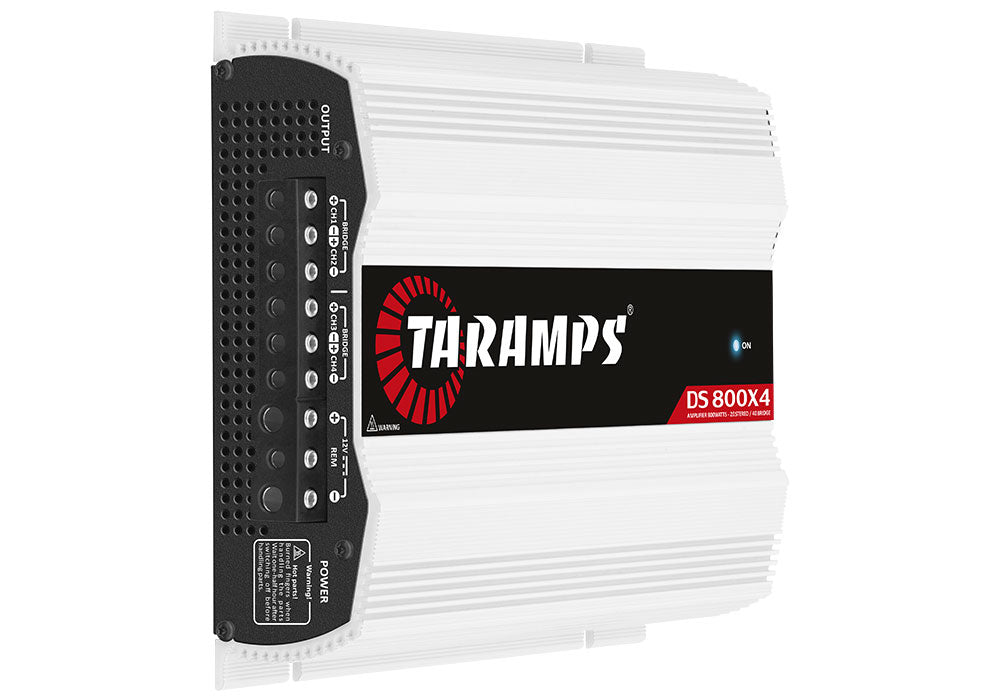

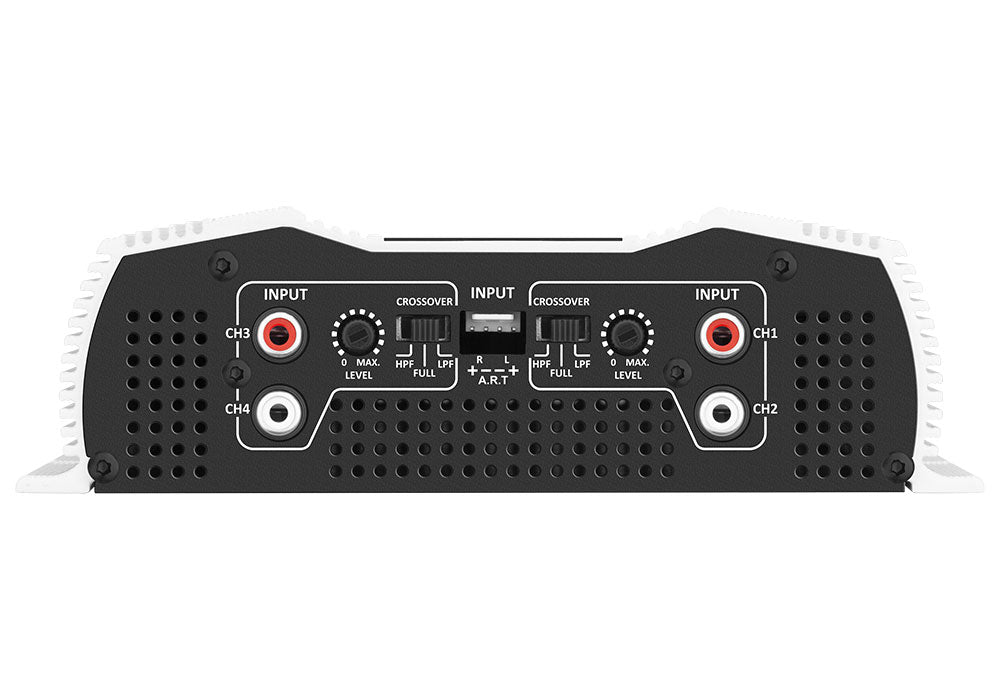

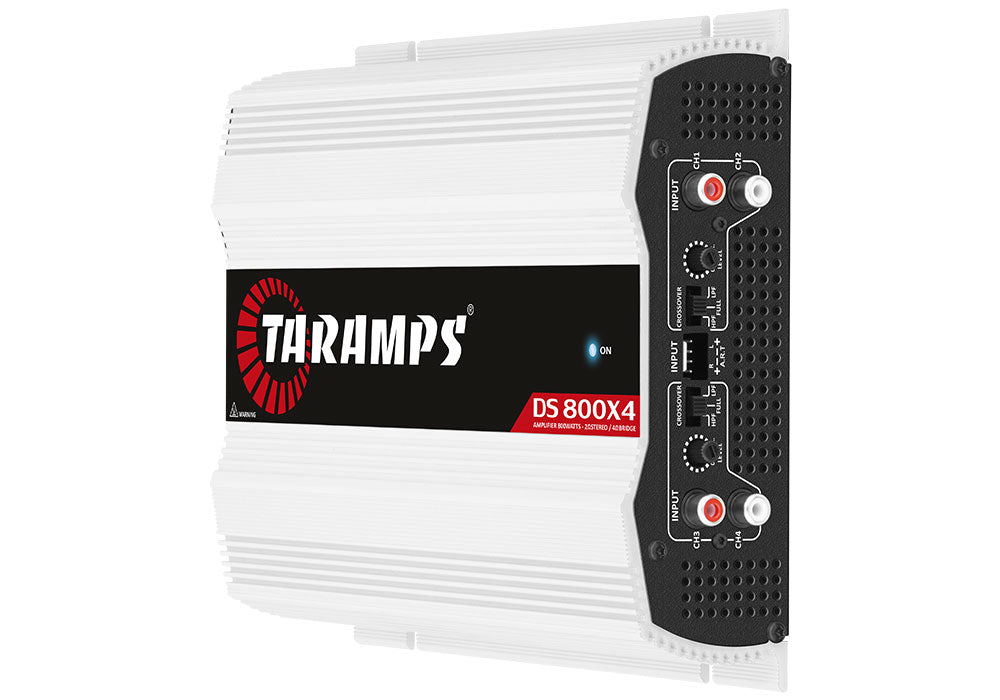

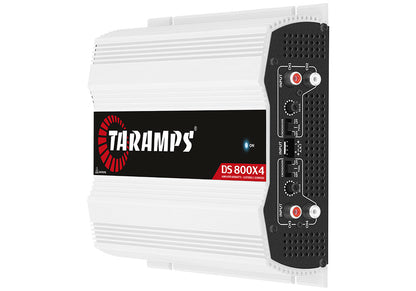

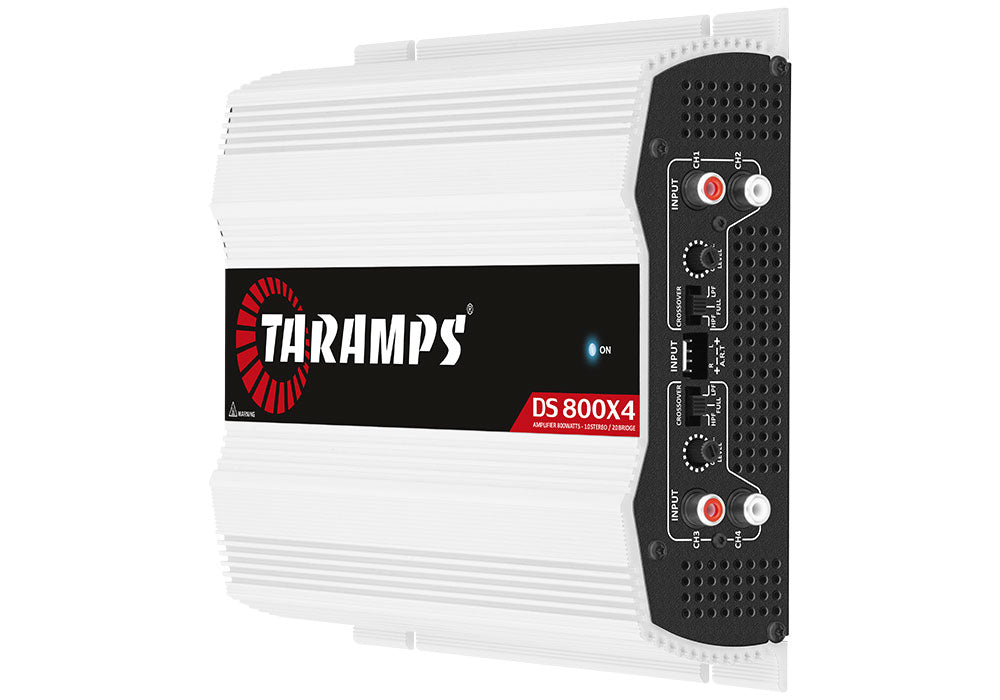

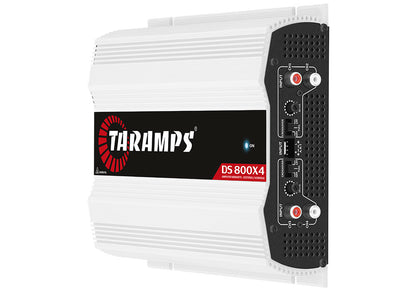

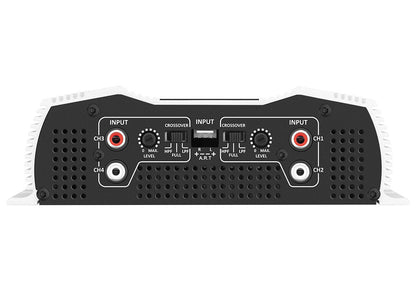

Discover unparalleled versatility with the DS 800×4 amplifier! Ideal for any speaker type, it delivers 800W RMS across four channels with bridge options. Features both RCA and high-level inputs for seamless integration with factory setups. Perfect for enhancing every audio detail.
1 Ohm VERSION
Nominal Power @12.6VDC 1 Ohm: 800W RMS (4 x 200W RMS) 2 Ohms: 544W RMS (4 x 136W RMS) 4 Ohms: N/A

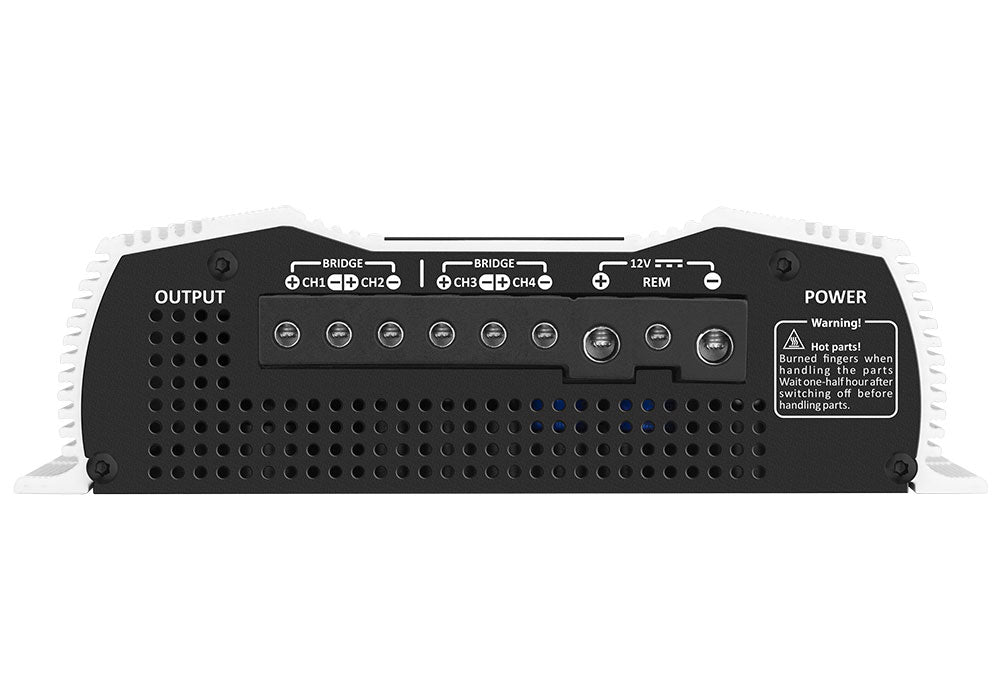

2 Channels Bridged: 2 x 400W RMS
Number of Channels
04
Input Sensitivity
250mV
Signal to Noise Ratio
>88dB
Frequency Response
10Hz ~ 22KHz (-3dB)
Crossover high pass (HPF)
90Hz (-12dB/8ª) Fixed
Crossover low pass (LPF)
90Hz (-12dB/8ª) Fixed
Input Impedance
10K Ohms
Output Impedance
1 Ohm
protection system
Output overload
Minimum Supply Voltage
9VDC
Maximum Supply Voltage
16VDC
Consumption at rest
1.0A
Maximum music consumption
51A
Maximum consumption in sinusoidal signal
102A
Dimensions (WxHxD)
7.24" x 2.13" x 7.48" (173 x 52 x 227mm)
Weight
3.04lb (1,43kg)
EAN
7898556844826
2 Ohms VERSION
Nominal Power @12.6VDC 1 Ohm: N/A 2 Ohms: 800W RMS (4 x 200W RMS) 4 Ohms: 544W RMS (4 x 136W RMS)
