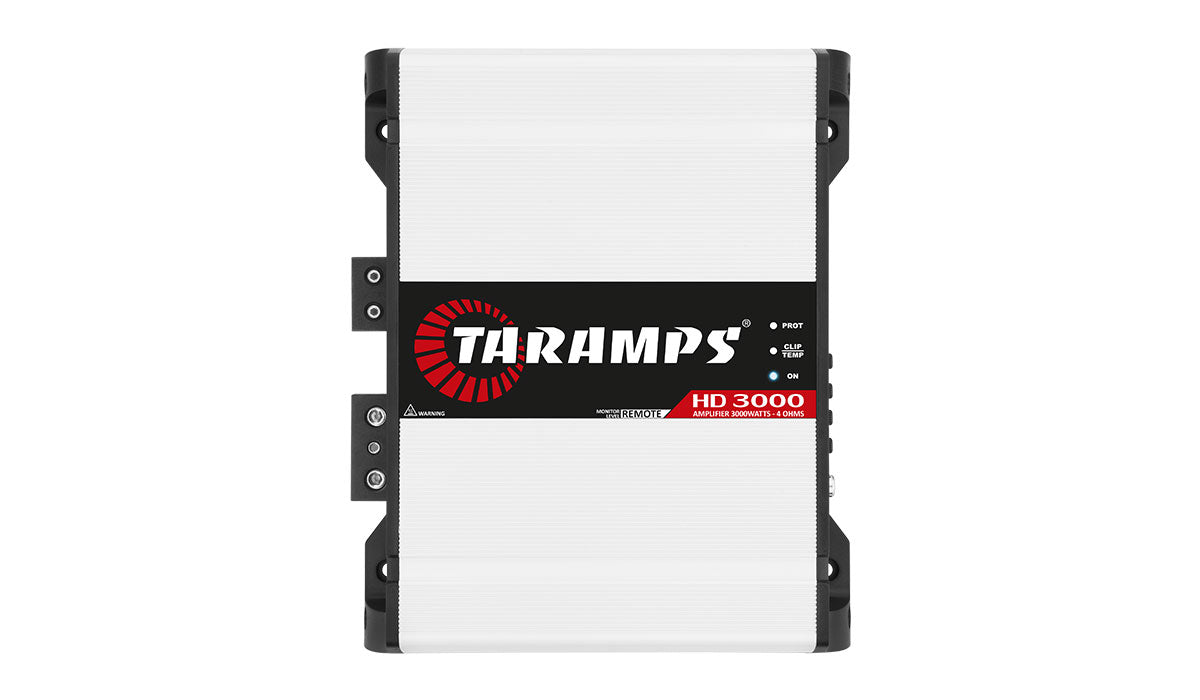

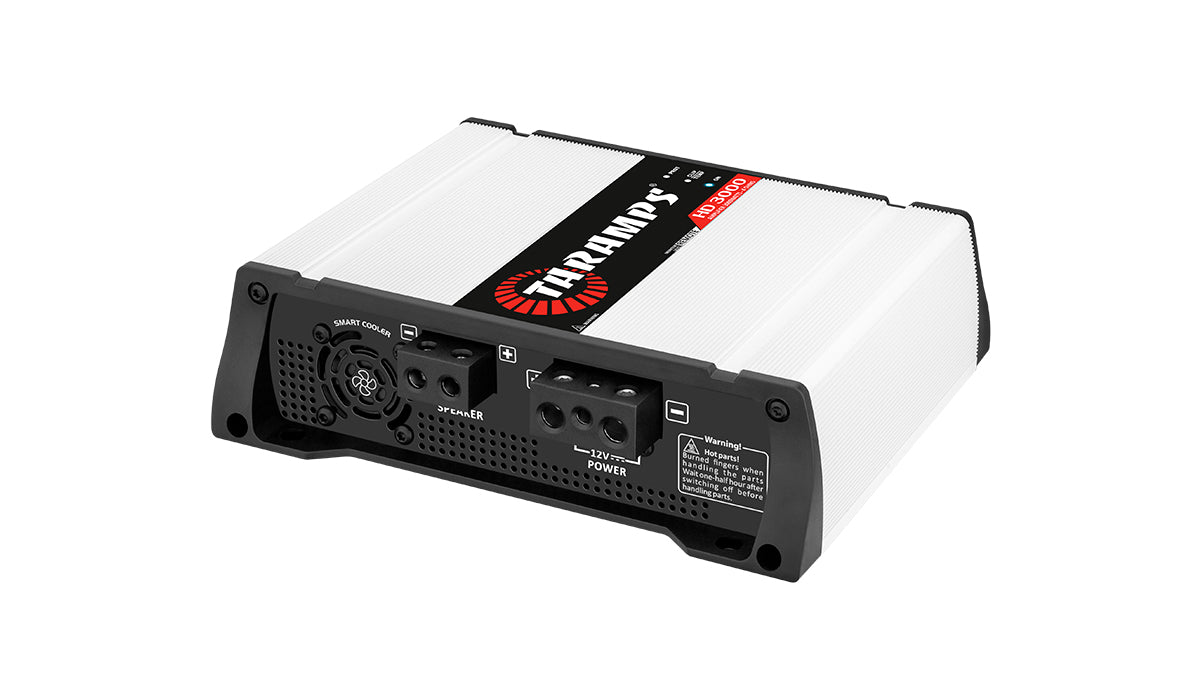

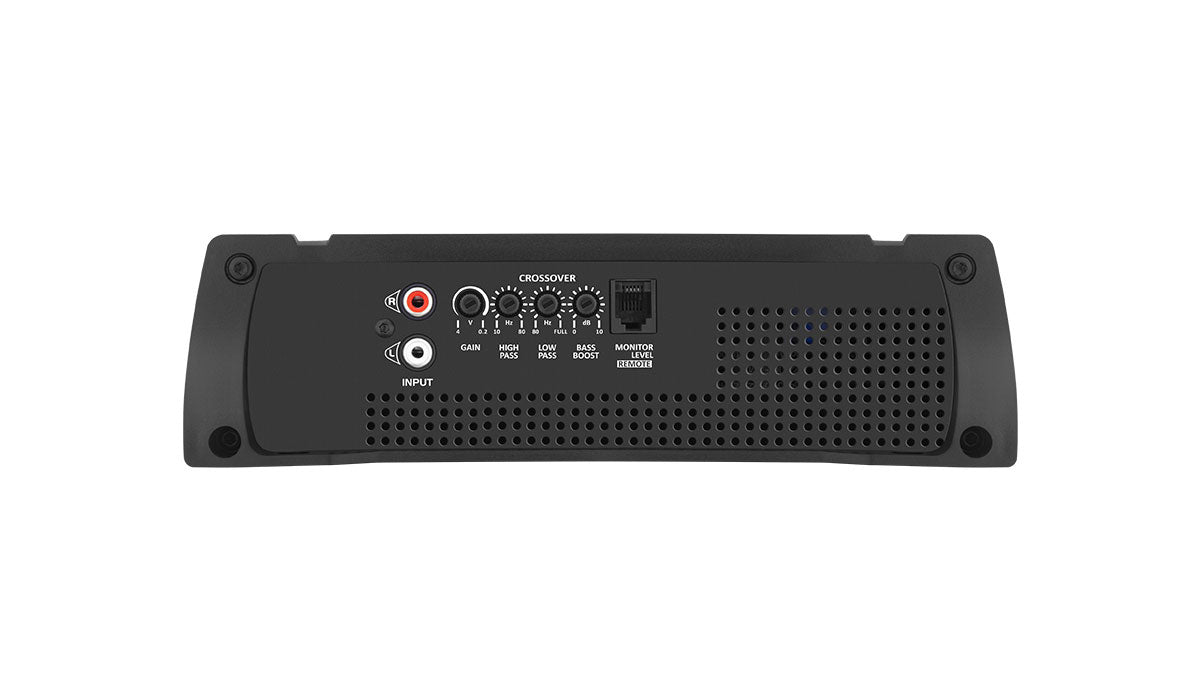

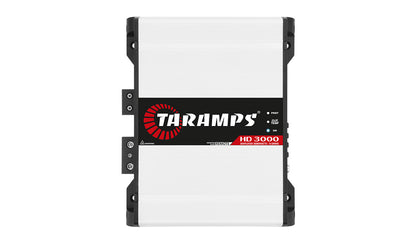

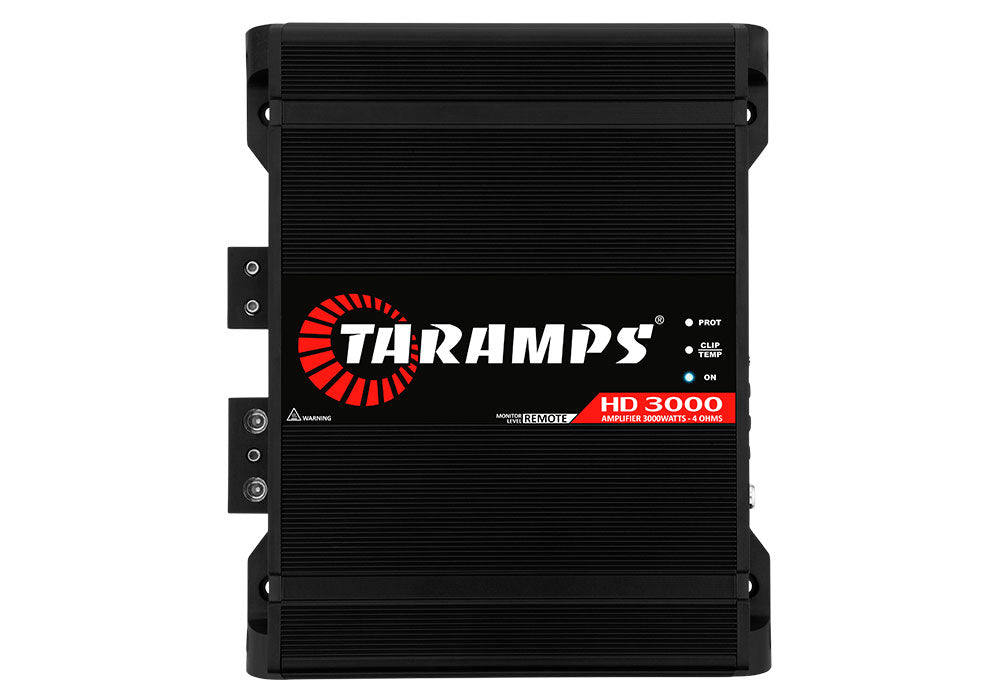

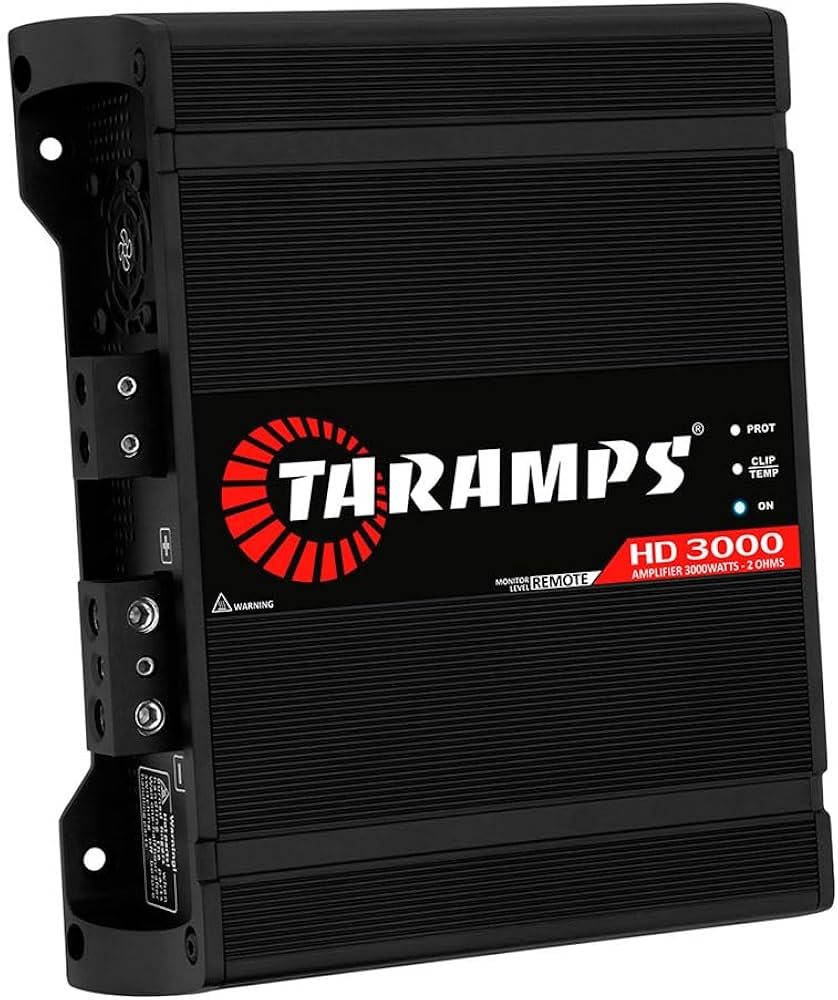

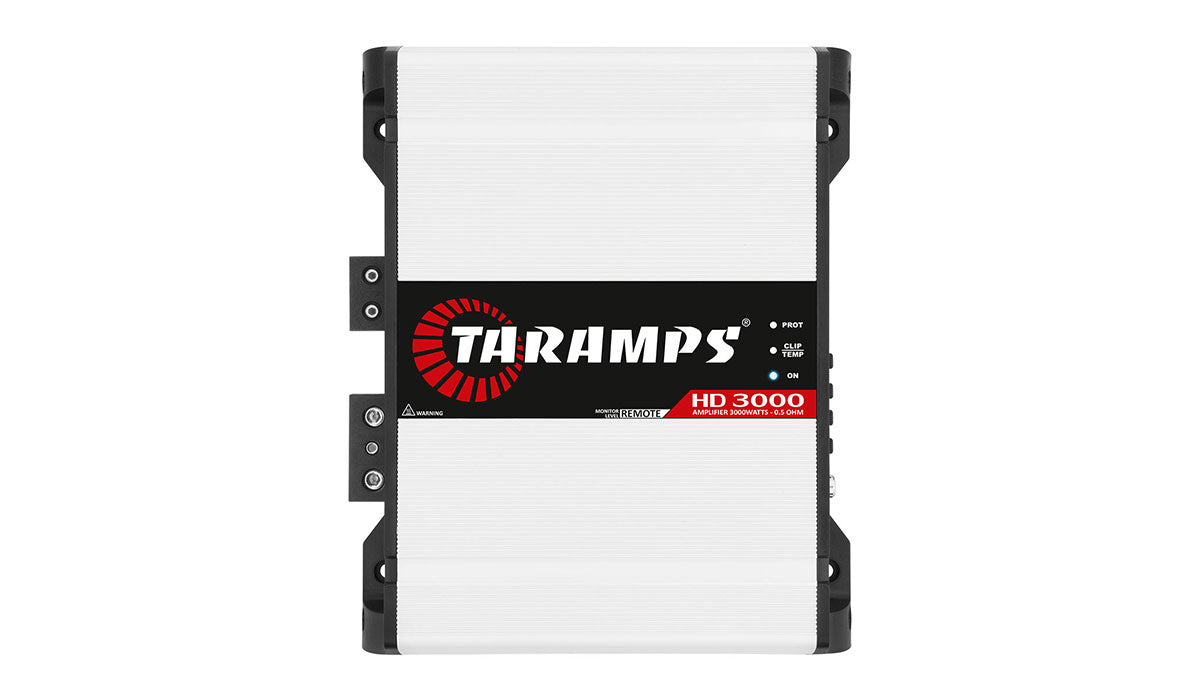

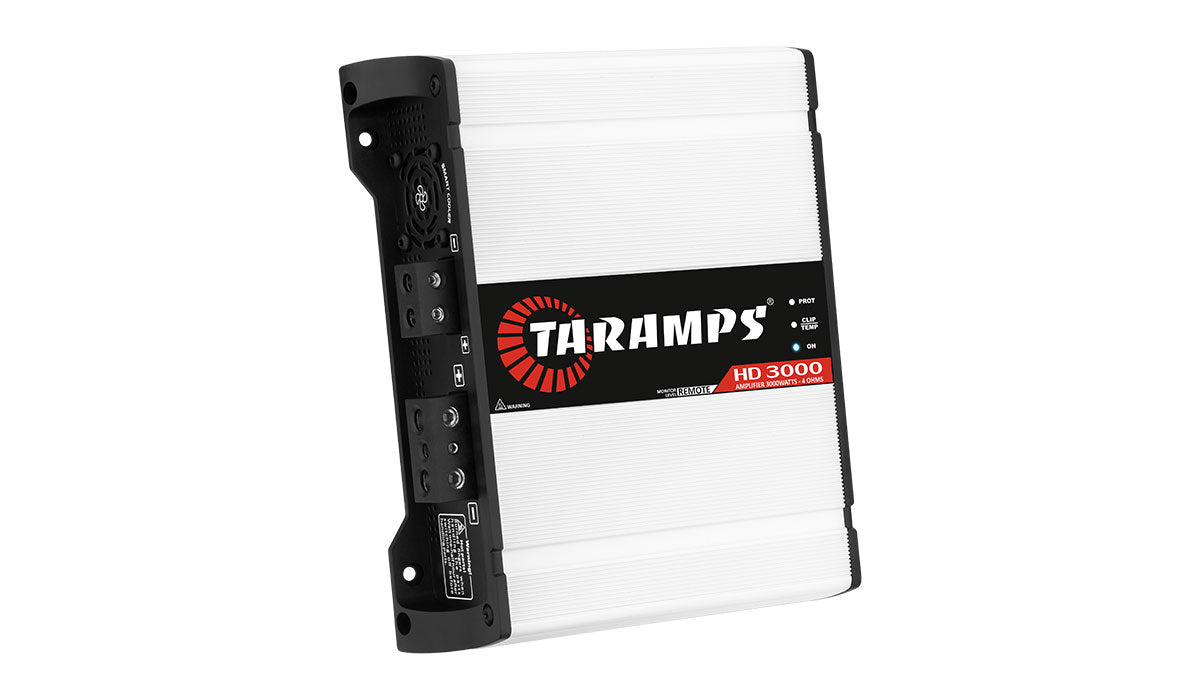

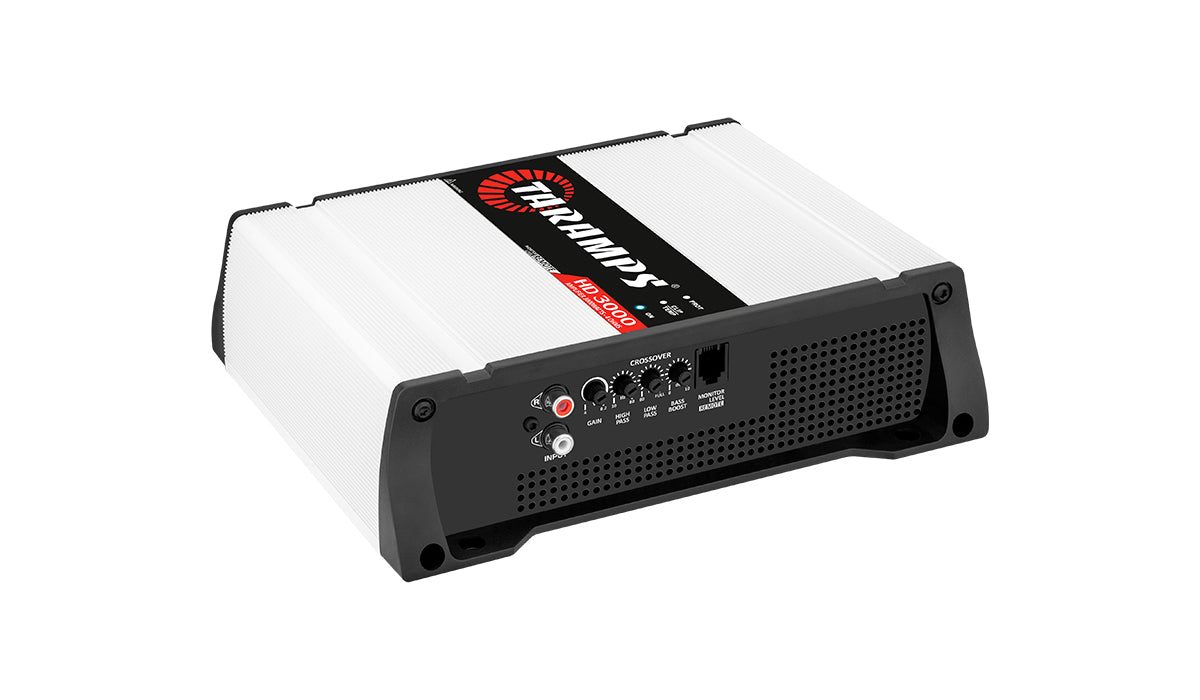

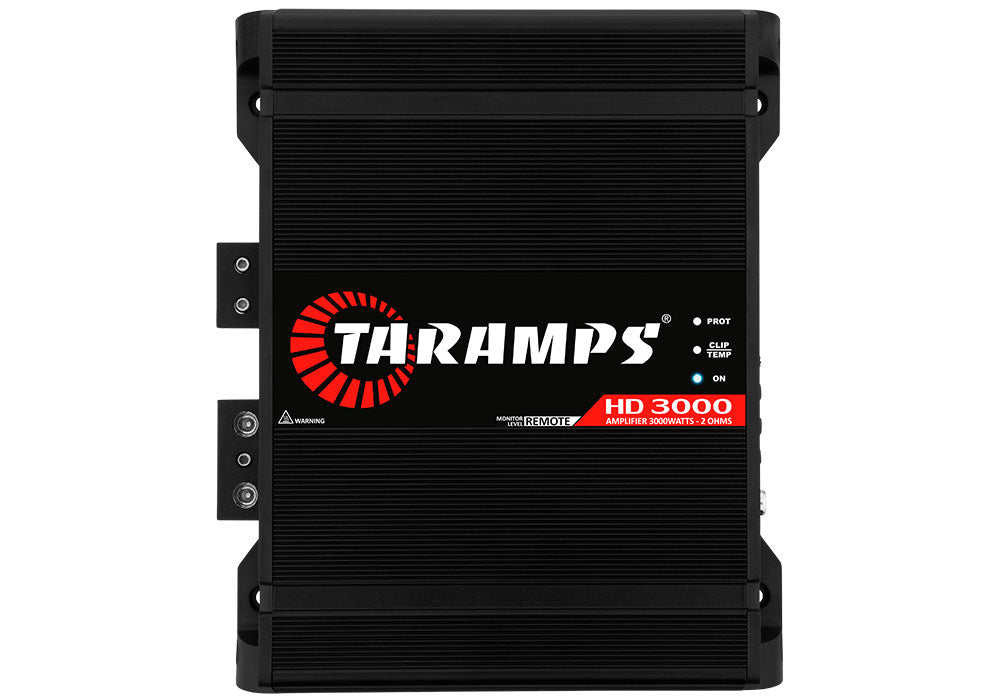

Taramps HD 3000 1 CHANNEL CAR AUDIO AMPLIFIER (Choose Color and Impedance)

$199.00

Sale Sold out

Shipping calculated at checkout.

Color: White

Impedance 0.5 OHM 1 OHM 2 OHM 4 OHM

With tradition and quality, the HD line is one of Taramps' most renowned amplifier lines. Composed of single- channel amplifiers, this line offers power, quality and versatility of use, all thanks to their wide frequency response. The 3000 WRMS models that are part of the HD family are both Full range. Furthermore, both have three impedance options: 0.5 Ohm, 1 Ohm, 2 Ohms or 4 Ohms. The main applications of these amplifiers include subwoofers, bass, mid-bass, mid-range, 6x9" full range speakers, phenolic drivers, titanium drivers, super tweeters and others.

Additional Information
Operation class	D
Minimum Output Impedance	0,5 OHM
Number of Channels	01
Maximum power	3000W RMS
Input Sensitivity	0.22 V ~ 4 V
Signal to Noise Ratio	>89 dB
Frequency Response	10Hz ~ 20 KHz (-3 dB)**
Crossover high pass (HPF)	10 Hz ~ 80Hz (-12 dB/8º) Variable
Crossover low pass (LPF)	80 Hz ~ Full (-12 dB/8º) Variable
bass boost	0 ~ 10 dB (50 Hz)
Input Impedance	10 K OHMS
protection system	output short-circuit, output short-circuit to GND, low impedance protection, low/high voltage protection and thermal protection.
Minimum Supply Voltage	9 VDC
Maximum Supply Voltage	17 VDC
Consumption at rest	1.50 A
Maximum music consumption	145 A
Dimensions (WxHxD)	229 x 65 x 186 mm (9.02" x 2.56" x 7.32)
Weight	2,05 Kg (4.51 lb)
Rated Power Consumption: 290A
EAN	7908706602449

OHM VERSION	1 OHM: Nominal Power @12.6VDC 1 Ohm: 3000W RMS 2 Ohms: 2025W RMS 4 Ohms: N/A 8 Ohms: N/A 2 OHM: Nominal Power @12.6VDC 1 Ohm: N/A 2 Ohms: 3000W RMS 4 Ohms: 2025W RMS 8 Ohms: N/A 4 OHM: Nominal Power @12.6VDC 1 Ohm: N/A 2 Ohms: N/A 4 Ohms: 3000W RMS 8 Ohms: 2025W RMS
Number of Channels	01
Input Sensitivity	0.22V ~ 4V
Signal to Noise Ratio	>89dB
Frequency Response	10Hz ~ 20KHz (-3dB)
Crossover high pass (HPF)	10Hz ~ 80Hz (-12dB/8ª) Variable
Crossover low pass (LPF)	80Hz ~ Full (-12dB/8ª) Variable
bass boost	0 ~ 10dB (50Hz)
Input Impedance	10K Ohms
Output Impedance	1 Ohm
protection system	Output Short-Circuit, High or Low Supply Voltage, Thermal Protection
Minimum Supply Voltage	9VDC
Maximum Supply Voltage	16VDC
Consumption at rest	1.5A
Maximum music consumption	153A
Maximum consumption in sinusoidal signal	306A
Dimensions (WxHxD)	9.01" x 2.56" x 7.32" (229 x 65 x 186mm)
Weight	4.96lb (2.25Kg)
EAN	1 OHM White: 7898556840903 2 OHM White: 7898556840880 / Black: 7908706602630 4 OHM White: 7898556844925 / Black: 7908706602647
