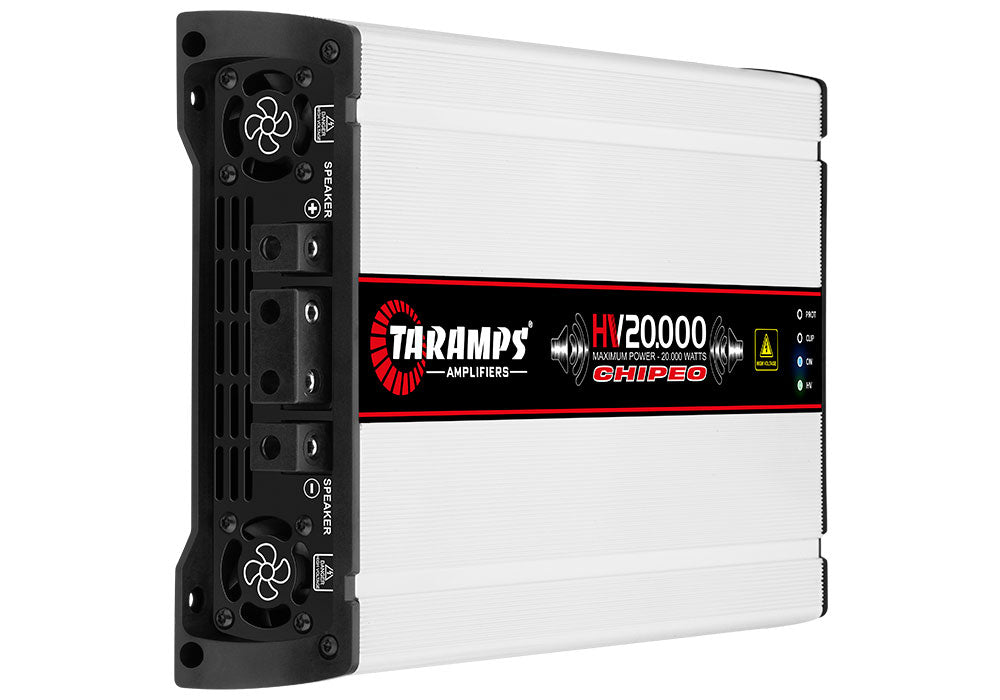

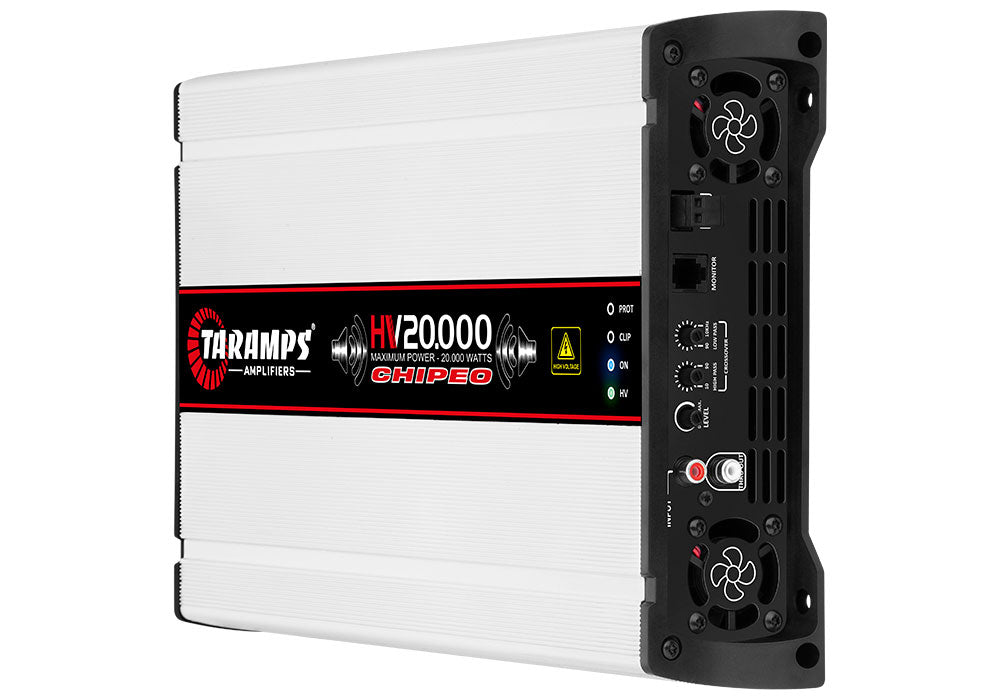

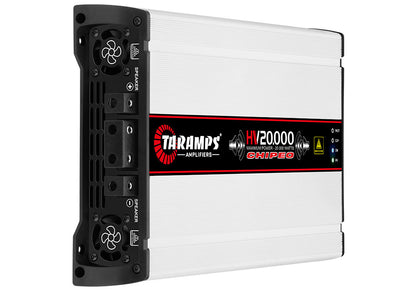

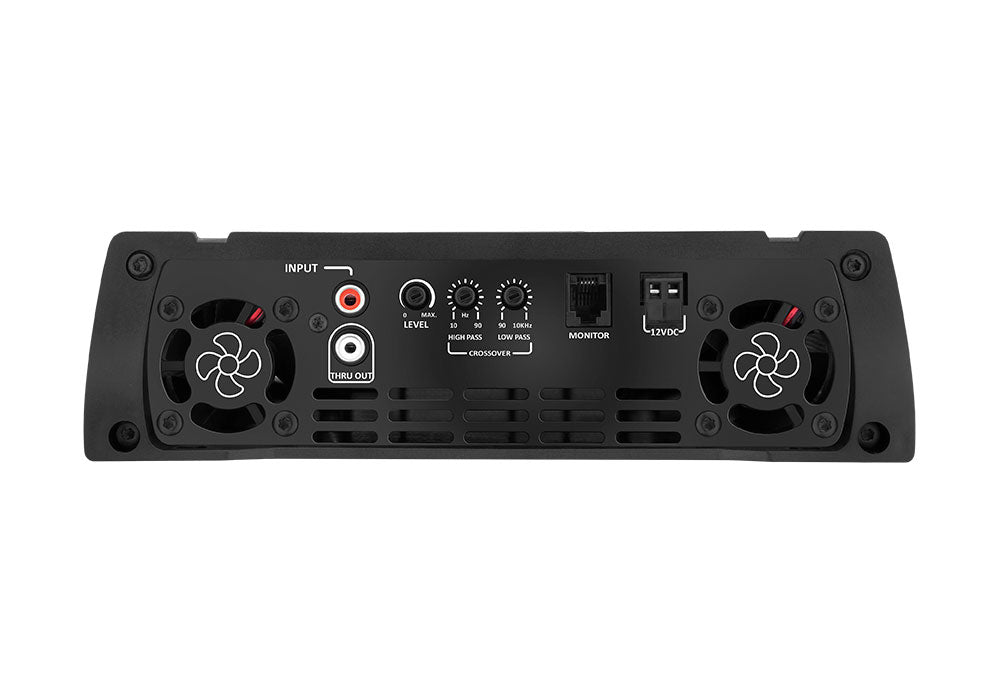

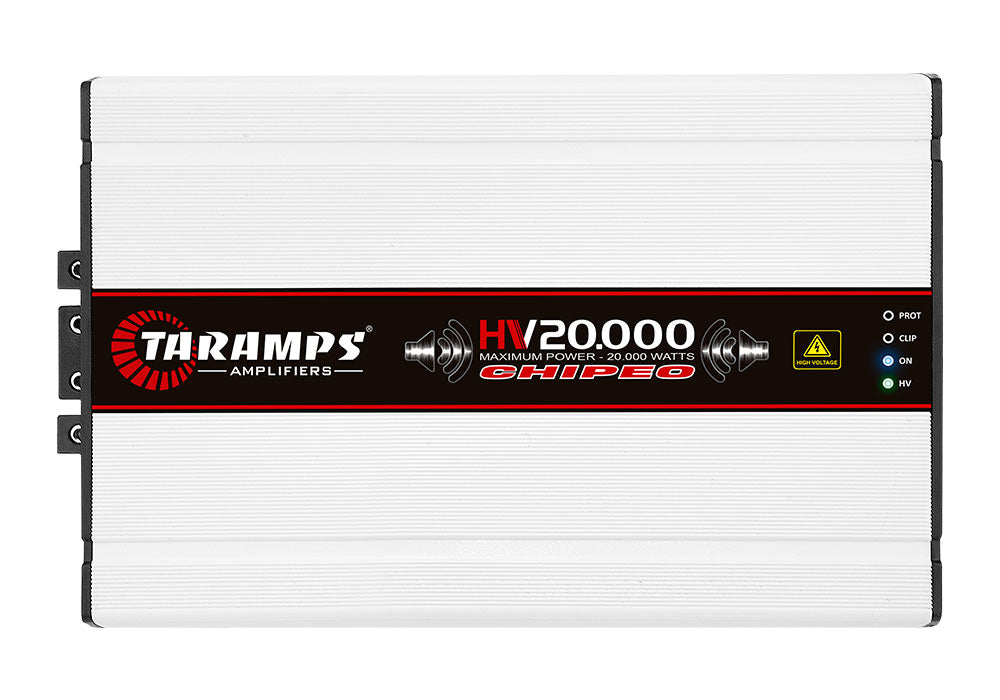

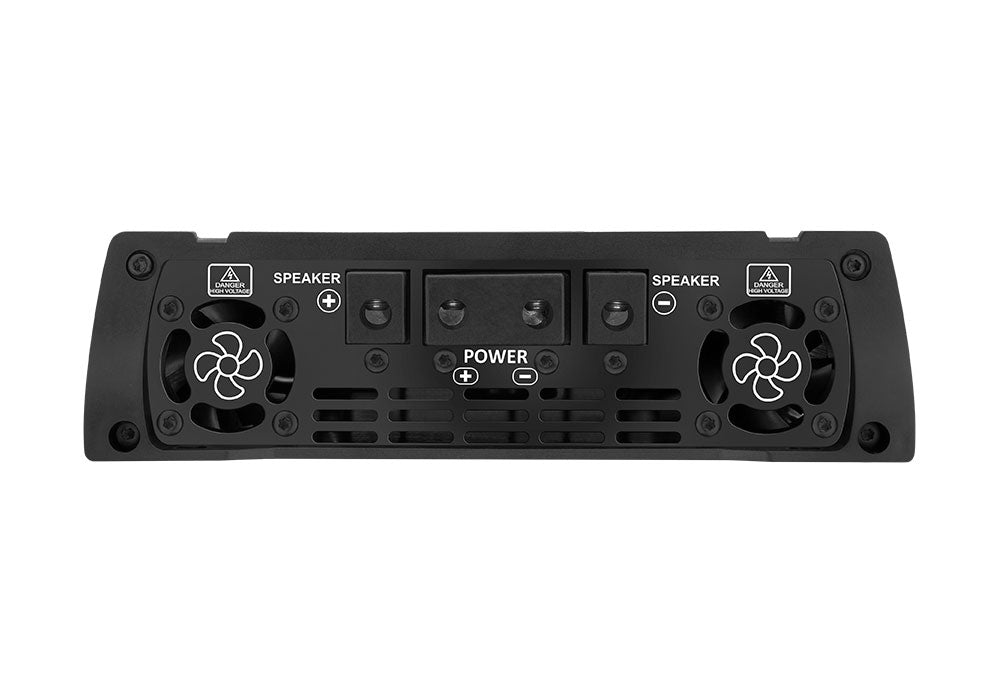

Taramps HV 20000 CHIPEO 164VDC LOW-IMPEDANCE 1 CHANNEL AUDIO AMPLIFIER 0.5 OHM
Taramps HV 20000 CHIPEO 164VDC LOW-IMPEDANCE 1 CHANNEL AUDIO AMPLIFIER 0.5 OHM
Regular price
$375.00
Regular price
Sale price
$375.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Power, performance and high output are some of the synonyms of this Taramps module. It has a maximum power of 20,000 Watts RMS at 0.5 ohm, thermal and anti-short circuit protection. It is powered by batteries in series, as it uses batteries as its power source. This is a unique line in its category, delivering extremely high power to medium and large car stereos. Highlights from the sub-bass to the mid-range, with high timbre performance and sound quality.
Meet the HV 20.000 CHIPEO!
| 0.5 Ohm VERSION | Potência Máxima @ 164VDC 0,5 Ohm: 20.000W RMS |
|---|---|
| Number of Channels | 01 |
| Output Voltage | 164VDC @ 0,5 Ohm - 13 Baterias |
| Input Sensitivity | 330mV (Level 100%) @ 0,5 Ohm |
| Aux Input standard | 0,2% |
| Signal to Noise Ratio | >98dB |
| Frequency response | 10Hz ~ 10KHz (1dB) |
| Efficiency | 91% @0,5 Ohm (A máxima potência) |
| Input impedance | 22K Ohms |
| Protection system | Curto na Saída, curto na saída em relação ao GND Tensão Baixa, Tensão Alta e Proteção Térmica controlada. |
| Power Supply Voltage | Mínima: 100VDC Máxima: 250VDC |
| Consumption at rest | 150mA |
| Maximum music consumption @ 0.5 Ohm | 67A |
| Maximum Sinusoidal Consumption @ 0.5 ohm (100Hz) | 134A |
| Dimensions (H x W x D) | 228 x 64 x 358mm |
| Weight | 3,60Kg |
| EAN | 7898556845007 |
