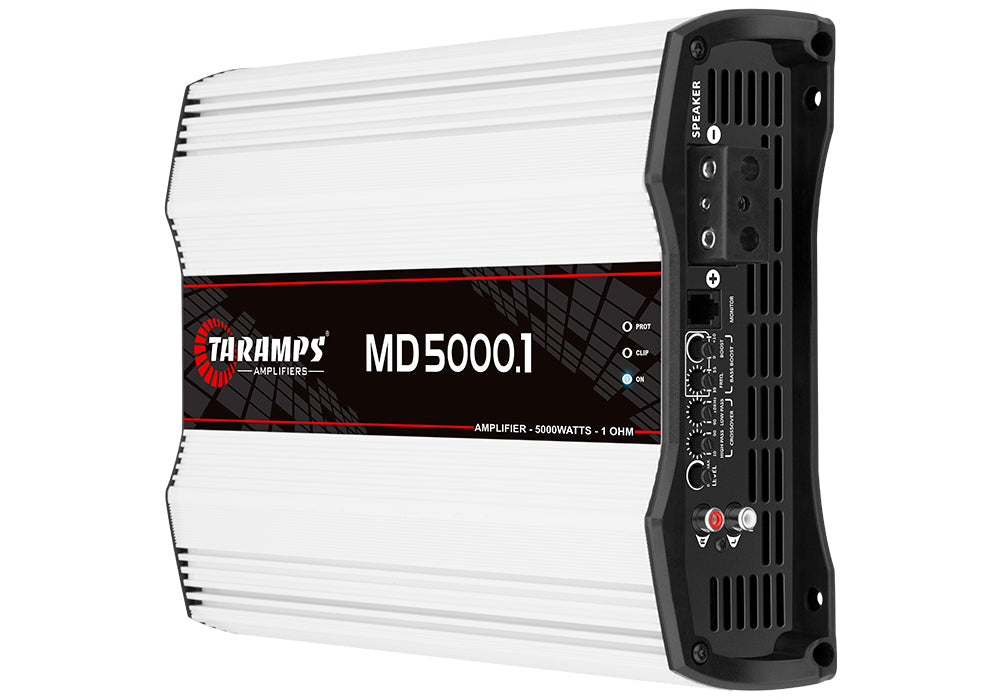

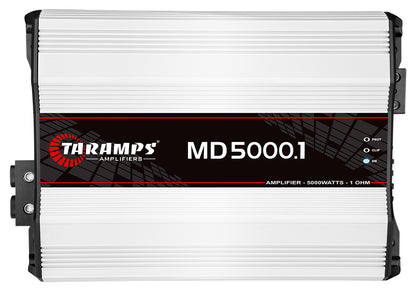

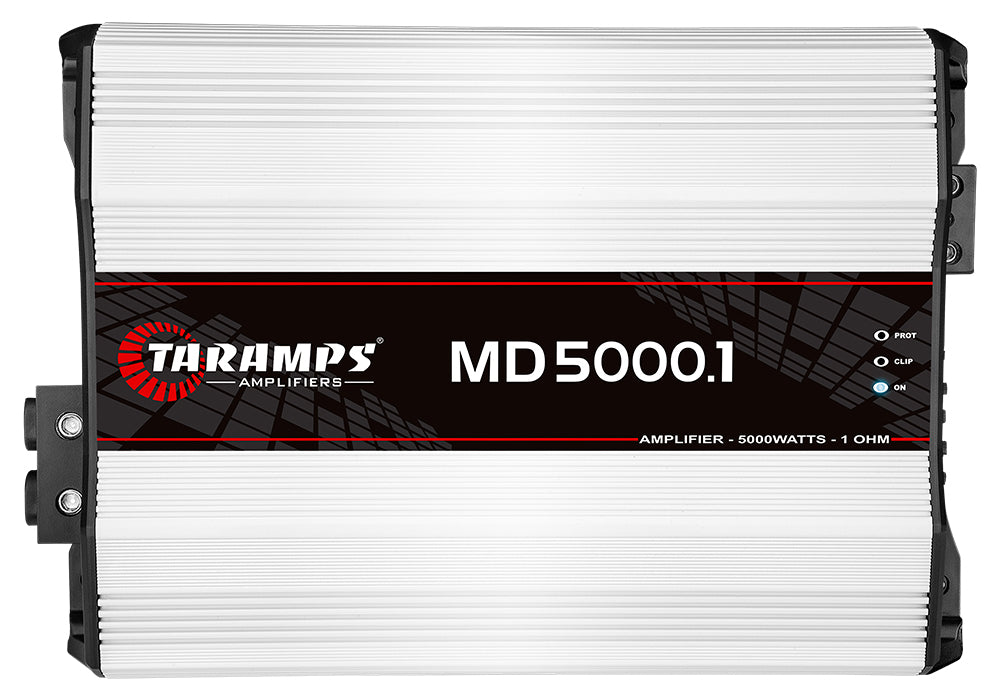

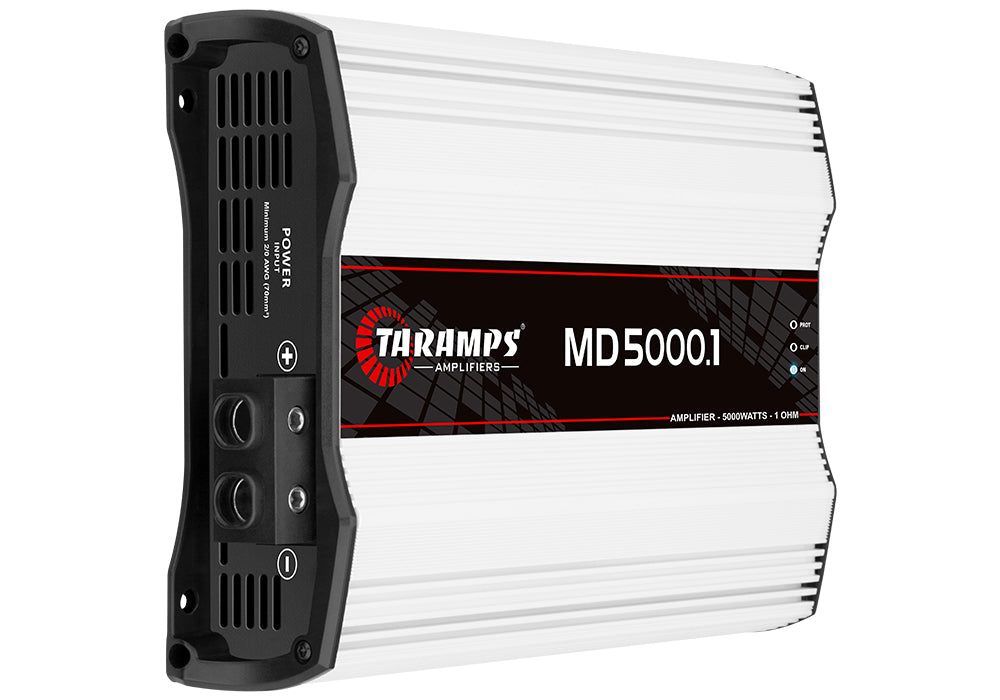

Taramps MD 5000 1 CHANNEL CAR AUDIO AMPLIFIER (Choose Impedance)

Taramps MD 5000 1 CHANNEL CAR AUDIO AMPLIFIER (Choose Impedance)

$375.00
$375.00
Sale Sold out
Shipping calculated at checkout.
Impedance

Unlock superior sound with the Taramps MD 5000.1 amplifier, delivering 5000 Watts RMS and full-range audio (10Hz to 10KHz). Perfect for diverse car audio setups, this high-efficiency, mono module ensures crystal-clear quality across all frequencies

1 Ohm VERSION Nominal Power @12,6VDC
1 Ohm: 5000W RMS
2 Ohms: 3200W RMS
4 Ohms: N/A

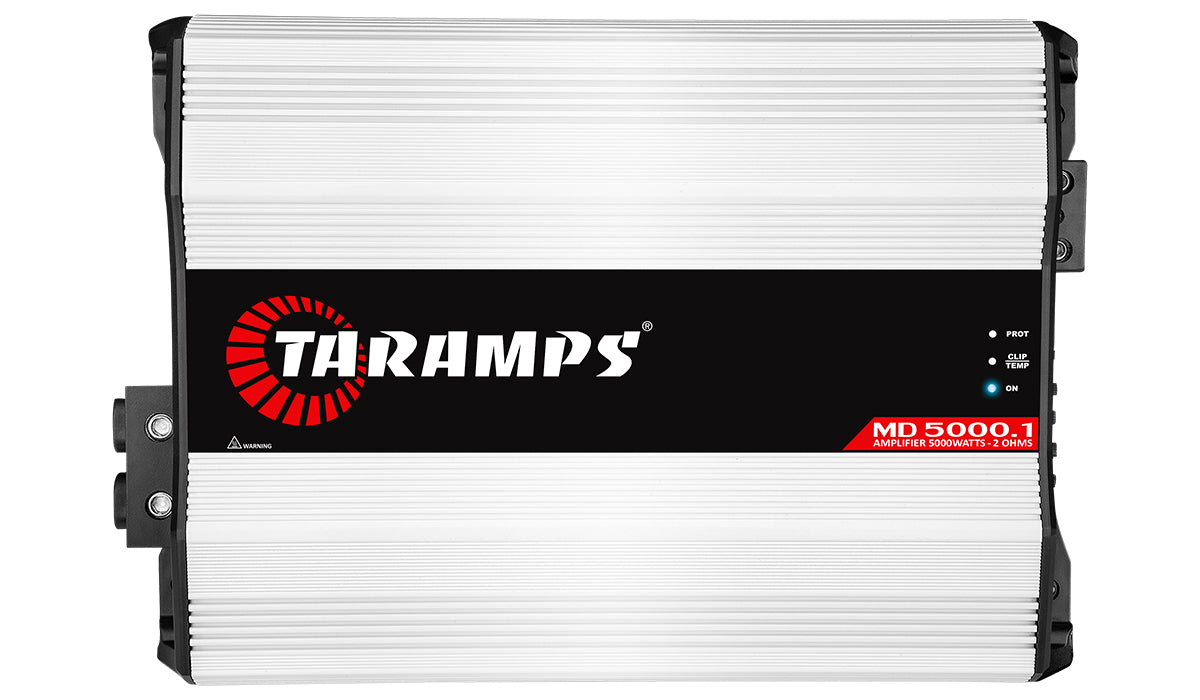

2 Ohm VERSION Nominal Power @12,6VDC
1 Ohm: N/A
2 Ohms: 5000W RMS
4 Ohms: 3200W RMS
Number of Channels 01
Input Sensitivity 220mV
Signal to Noise Ratio >90dB
Frequency Response 10Hz ~ 10KHz (-3dB)
Crossover high pass (HPF) 10Hz ~ 90Hz (-12dB/8ª) Variable
Crossover low pass (LPF) 90Hz ~ 10KHz (-12dB/8ª) Variable
bass boost Freq.: 35Hz ~ 55Hz
Boost: 0 ~10dB (50Hz)
Efficiency 81%
Input Impedance 15K Ohms
Output Impedance 1 Ohm
protection system Short-Circuit to Output, Short on output compared to GND, Low impedance at output, High/Low supply voltage and Thermal protection.
Minimum Supply Voltage 9VDC
Maximum Supply Voltage 16VDC
Consumption at rest 1.20A
Maximum music consumption 244.50A
Maximum consumption in sinusoidal signal 489A
Dimensions (WxHxD) 8.98" x 2.76" x 12.87" (228 x 70 x 327mm)
Weight 9.28lb (4.22Kg)
EAN 1 OHM VERSION 7898556844697
EAN 2 OHM VERSION 7898556844499
