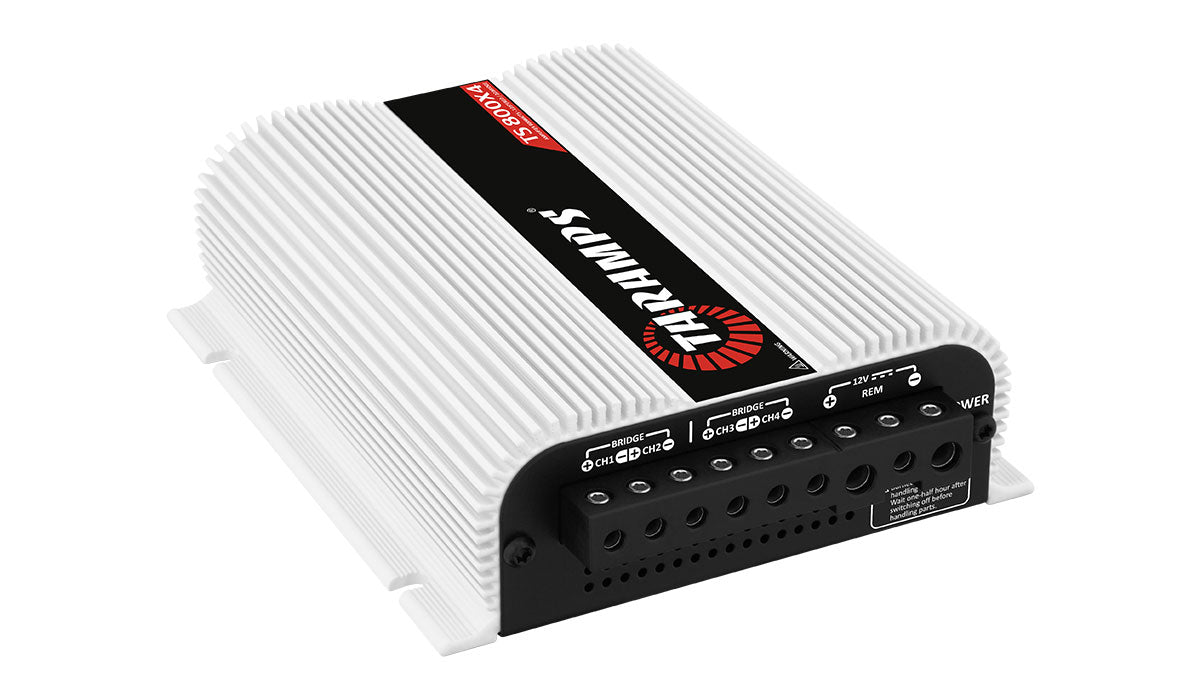

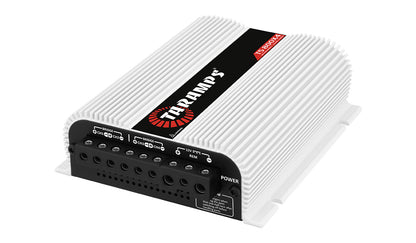

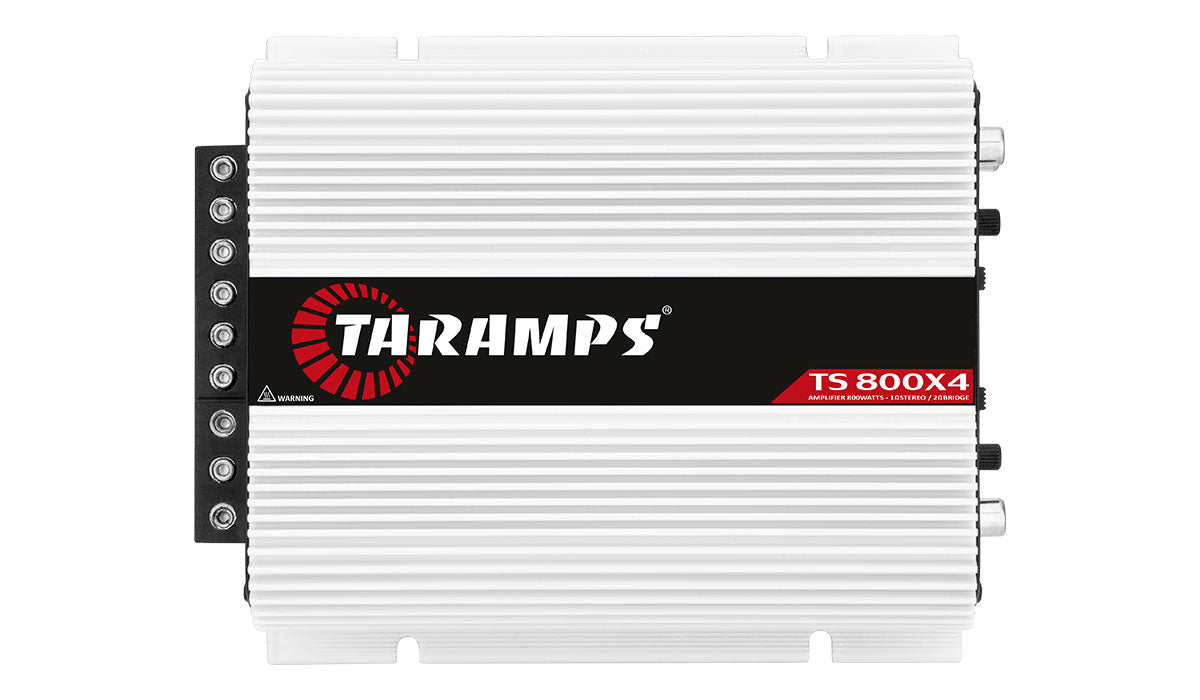

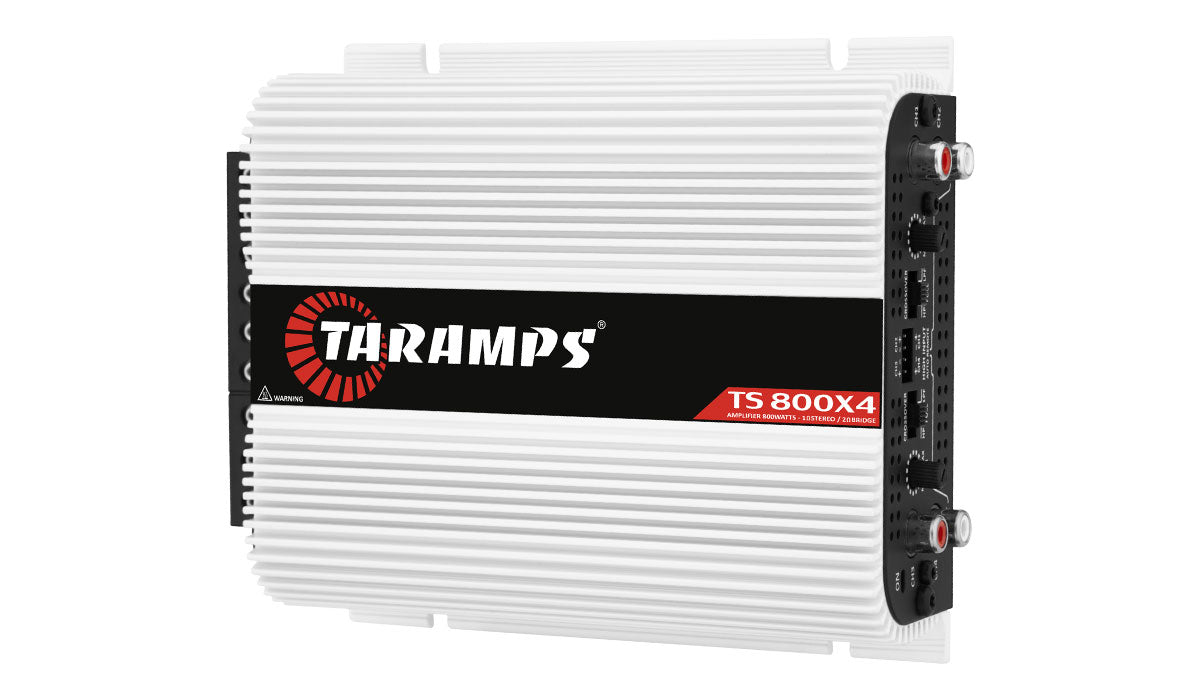

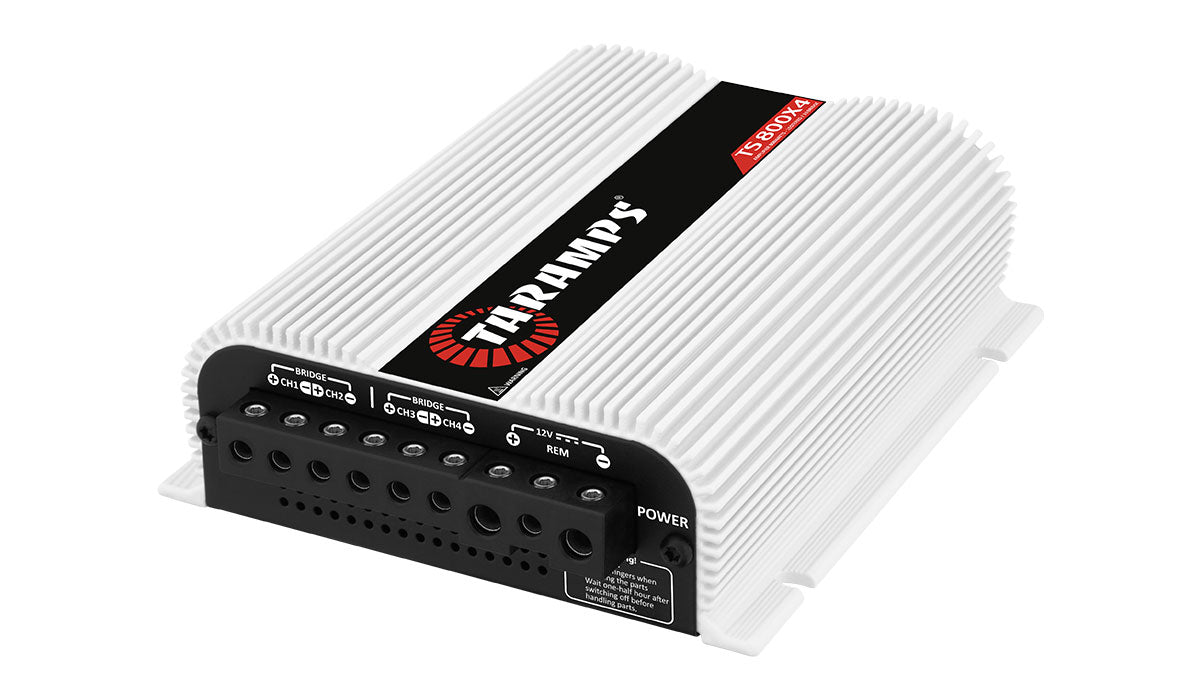

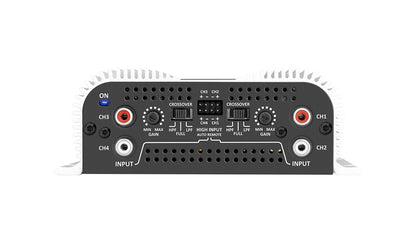

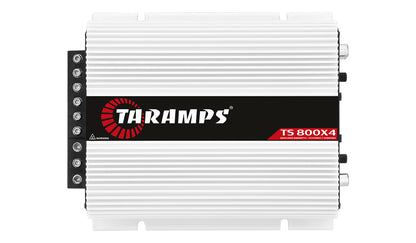

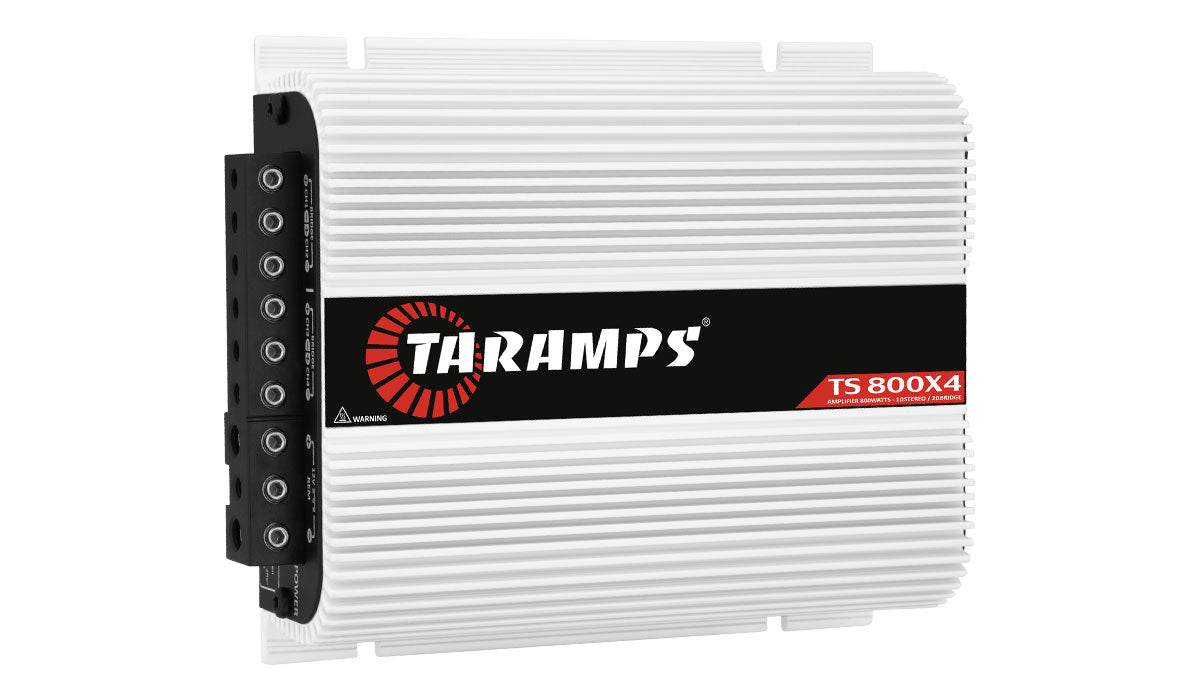

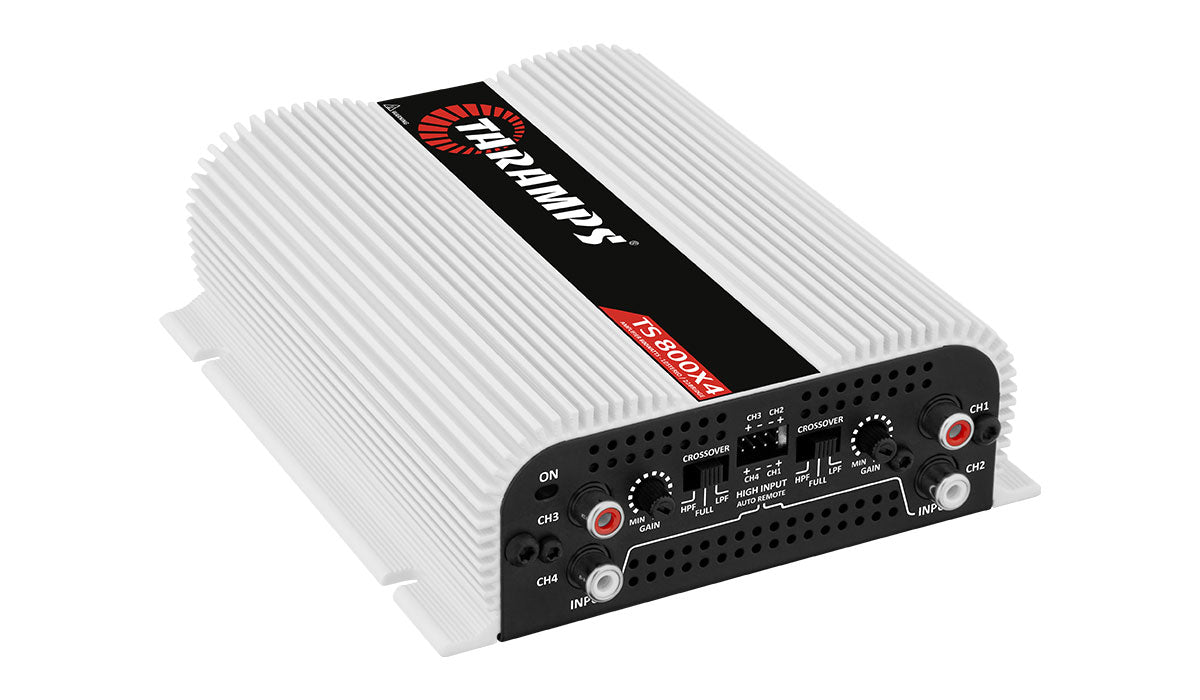

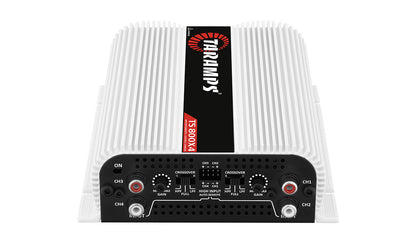

Taramps TS 800X4 4 CHANNEL CAR AUDIO AMPLIFIER (Choose Impedance)

$125.00

Sale Sold out

Shipping calculated at checkout.

Impedance 1 OHM 2 OHM

Discover the TS 800x4 2 Ohms amplifier, tailored for modern audio needs! This 4-channel amp seamlessly integrates with factory radios and multimedia systems, offering 800 watts of power without adapters. It features robust connectors for safe, easy installation and versatile crossover settings for optimal sound customization. Elevate your audio experience effortlessly.

1 Ohm VERSION	Rated Power @14.4VDC 1 Ohm: 800W RMS (4 x 200W RMS) 2 Ohms: 544W RMS (4 x 136W RMS) 2 Bridged Channels 2 Ohms: 800W RMS (2 x 400W RMS)
Minimum Output Impedance	(PT) 1 Ohm
Number of Channels	04
Input Sensitivity	RCA: 4V (min.) / 250mV (max.) WIRE: >10V (min.) / 3V (max.)
Signal to Noise Ratio	>90dB
Frequency Response	10Hz~20Hz (-3dB)**
Crossover high pass (HPF)	90Hz(-12dB/8ª) Fixed
Crossover low pass (LPF)	90Hz(-12dB/8ª) Fixed
Input Impedance	10K Ohms (RCA)
protection system	Output Short Circuit
Minimum Supply Voltage	9 VDC
Maximum Supply Voltage	16 VDC
Consumption at rest	0,9A
Maximum music consumption	42A
Maximum consumption in sinusoidal signal	85A
Dimensions (WxHxD)	138 X 48 X 175mm / 5.43" x 1.89" x 6.89"
Weight	0.87 Kg / 1,91lb
EAN	7898556840552

2 Ohms VERSION	Nominal Power @14.4VDC 2 Ohms: 800W RMS (4 x 200W RMS) 4 Ohms: 544W RMS (4 x 136W RMS) 2 Bridged Channels 4 Ohms: 800 W RMS (2 x 400W RMS)
Number of Channels	04
Input Sensitivity	(RCA): 4V (min.) / 250mV (max.) (WIRE): >10V (min.) / 3V (max.)
Signal to Noise Ratio	>90dB
Frequency Response	10Hz ~ 20KHz (-3dB)
Crossover high pass (HPF)	90Hz (-12dB/8ª) Fixed
Crossover low pass (LPF)	90Hz (-12dB/8ª) Fixed
Input Impedance	10K Ohms (RCA)
Output Impedance	2 Ohms
protection system	Output Short Circuit
Minimum Supply Voltage	9VDC
Maximum Supply Voltage	16VDC
Consumption at rest	0.9A
Maximum music consumption	38A
Maximum consumption in sinusoidal signal	76A
Dimensions (WxHxD)	5.43" x 1.89" x 6.89" (138 x 48 x 175mm)
Weight	1.91lb (0.87Kg)
EAN	WHITE: 7898556849043
